Angelas™ Dental Diode Laser

Innovative Three Wavelengths (450nm + 650nm + 980nm) In Dentistry

The Angelas™ dental laser is an effective dental diode laser, thanks to the advanced technology and high quality, the Angelas performs excellently in soft-tissue surgeries, periodontics, endodontics, whitening and other oral therapies.

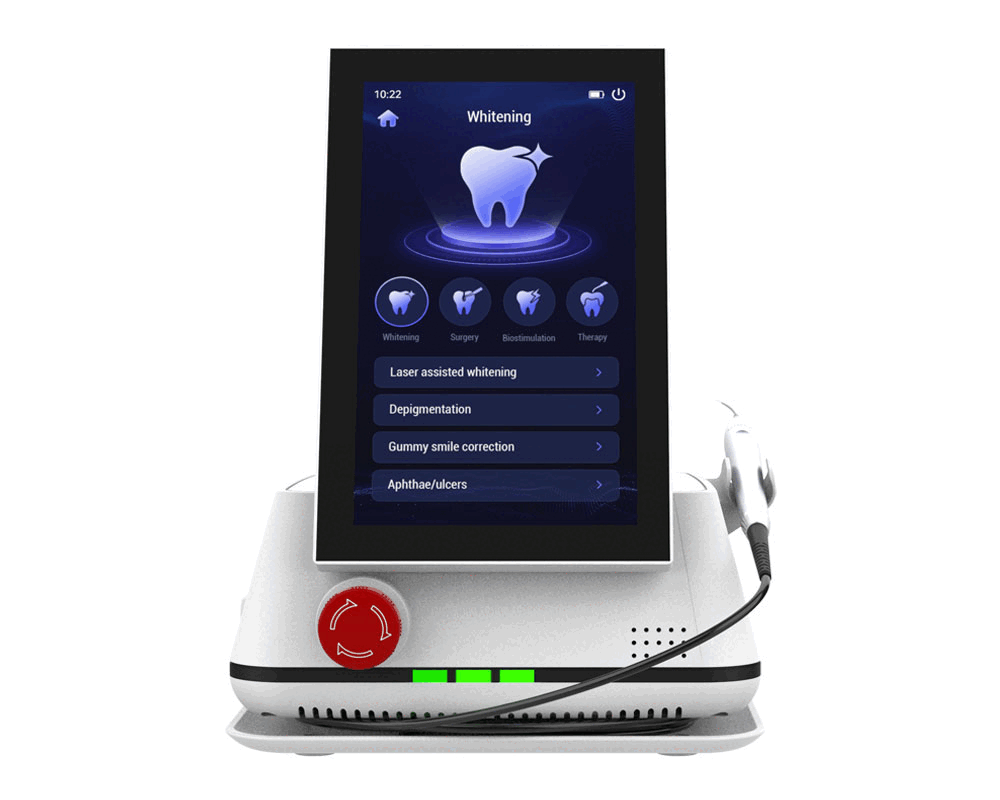

Angelas Dental Laser
1
2
3
Angelas dental diode laser
1

finger switch

2

7-inch interaction interface

3

safe cable storage

  • Portable design

    Small size, lightweight and portable with modular design.
    Finger switch for convenient treatment and true portability. ①

  • Intuitive interface

    Smart Android system, 7-inch, clear and large enough for easy touch. ②

  • Li-ion rechargeable battery

    Can be used in different treatment scenarios for a long time.

  • Safe cable storage

    Anticlockwise widing solution for safer transport and storage. ③

  • Disposable fiber tips

    Sterile fiber tips for immediate and safe treatments. ①

  • Ergonomic handpiece

    Easy replacement for different heads. ②

  • Ergonomic back handle

    Designed for easy mobility and portability. ③

  • Multi-functional

    Different combinations of wavelengths and powers.
    Multiple and exchangeable heads can meet different clinical demands.

1
2
3

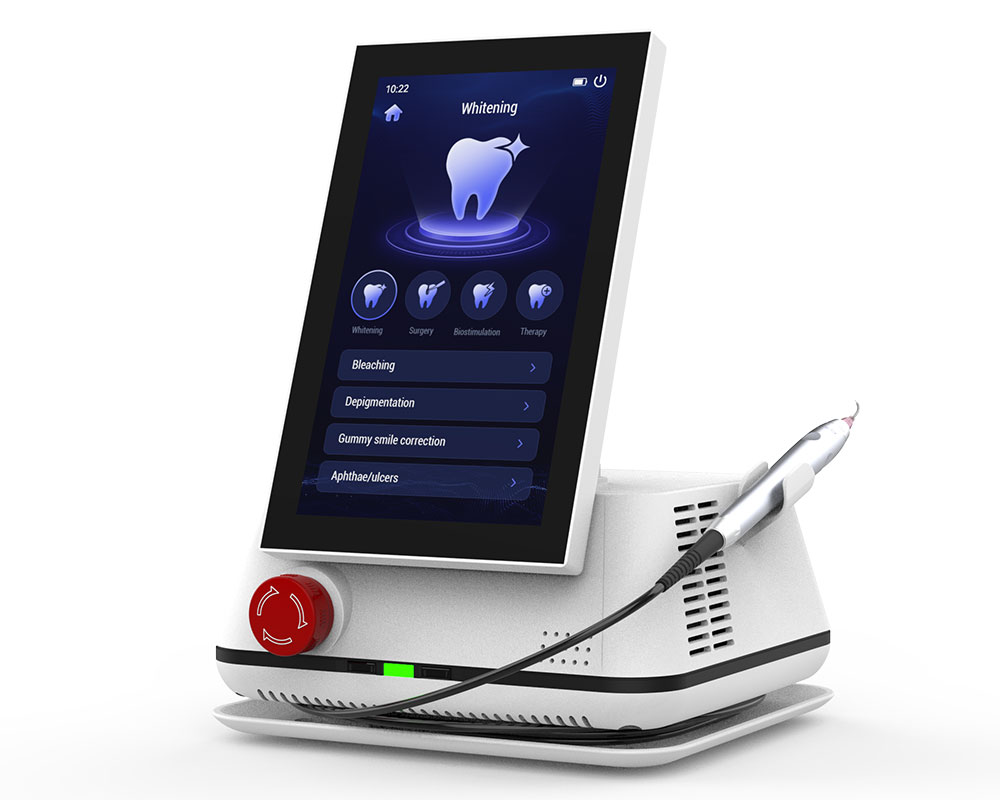

Angelas dental medical diode laser
1

disposable fiber tips

2

ergonomic handpiece

3

ergonomic back handle

Technique Specification
Product ModelAngelas™ Dental Laser
Laser TypeGaAlAs Diode
Laser SystemClass IV
Wavelength980nm+650nm | 980nm | 450nm+650nm+980nm | 450nm+650nm+980nm
Power10W+200mW | 10W | 4W+300mW+7W | 4W+500mW+10W
Operation ModeCW / Single or Repeat Pulses
Pulse Duration10us-3s
Repetition Rate1Hz-20KHz
lP Degree of ProtectionFoot switch (waterproof): IPX8
Aiming Beam650nm, Power＜5mW
Control ModeTrue Color Touch Screen (7 inches, resolution 600*1024px)
Transmission SystemMedical Fibers with SMA905 Connector
Power Supply100V-240V~at 2.0A
Dimensions180(L)*170(W)*250(H)mm
Weight2.0KG
