Angelas™ Diode Surgical Laser
980nm/1470nm All-In-One Diode Surgery Laser
Precision / Minimal Bleeding / Faster Recovery / Less Pain / Less Tissue Damage

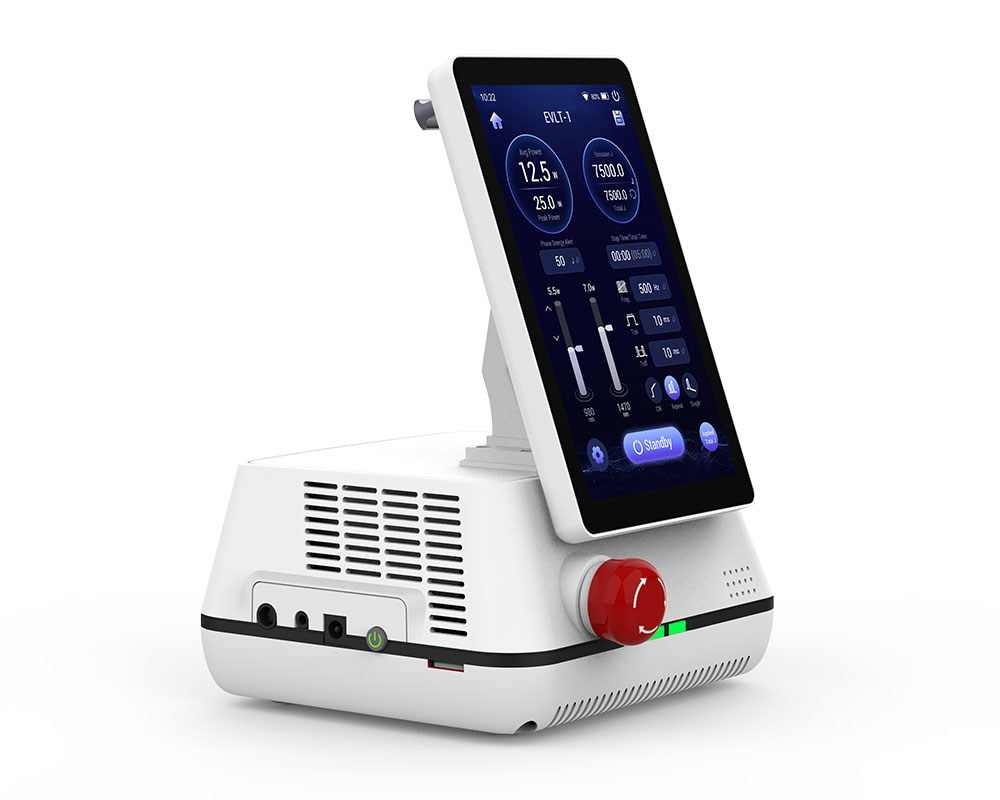

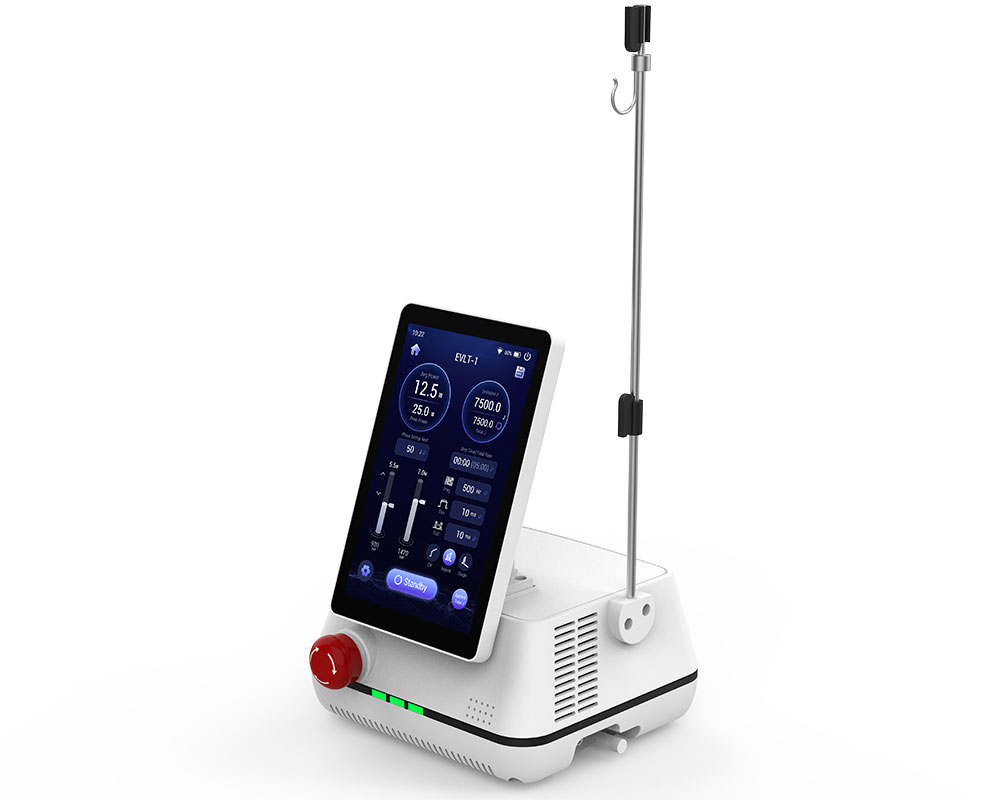

The Angelas Surgery Laser is an advanced diode medical laser system designed for precision, safety, and versatility in clinical applications. Featuring dual wavelengths (980nm+1470nm), a compact body, and a user-friendly 7-inch touchscreen interface, it supports a wide range of surgical procedures with minimal bleeding, faster recovery, and reduced tissue damage. With smart Android system, preset protocols, patient record management, and Wi-Fi support, Angelas offers a powerful all-in-one solution for modern surgical needs.
7-inch interaction interface

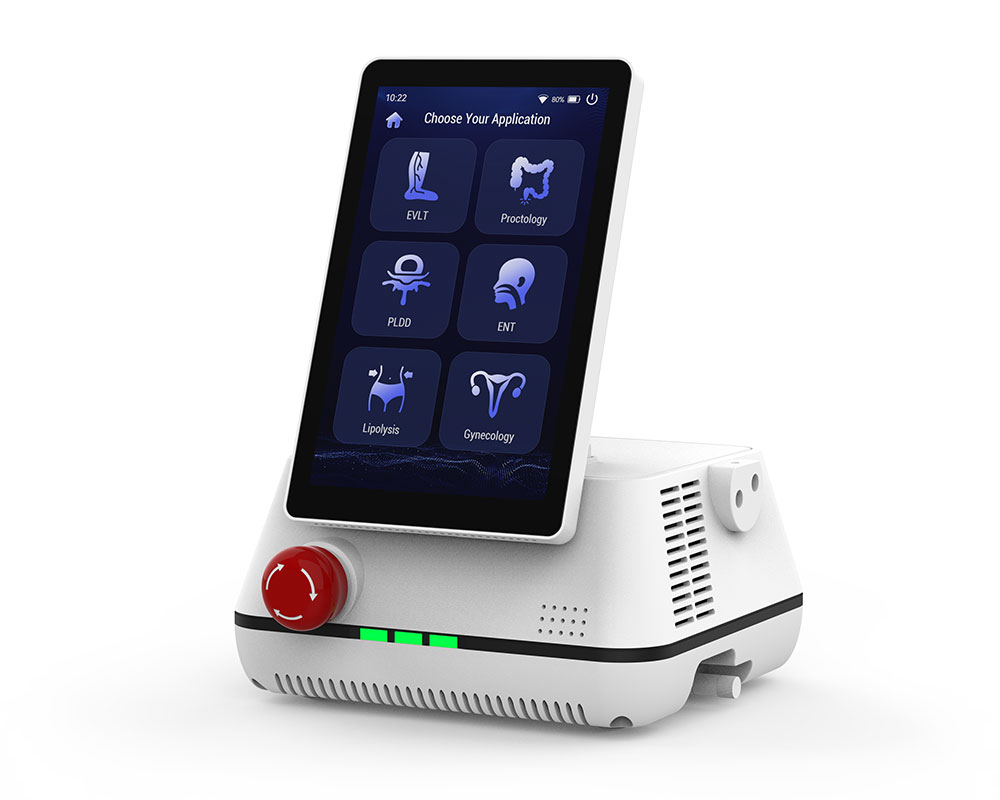

complete preset protocols (EVLT/Proctology/PLDD/ENT/Lipolysis/Gynecology)
double fans for efficient cooling
external fiber connector
| Product Model | Angelas™ Surgical Laser |
| Laser Type | GaAlAs Diode |
| Laser System | Class IV |
| Wavelength | 1470nm | 980nm+1470nm |
| Peak Power | 15W | 15W+15W |
| Operation Mode | CW / Single or Repeat Pulses |
| Pulse Duration | 10us-3s |
| Repetition Rate | 1Hz-20KHz |
| lP Degree of Protection | Foot switch (waterproof): IPX8 |
| Aiming Beam | 650nm, Power＜5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 600*1024px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Power Supply | 100V-240V~at 2.0A |
| Dimensions | 180(L)*170(W)*250(H)mm |
| Weight | 2.0KG |
