Coelas™ Diode Surgical Laser

Coelas 1470nm Diode Laser for Surgeries

Versatile / Portable / Android / Built-in Battery / Safe

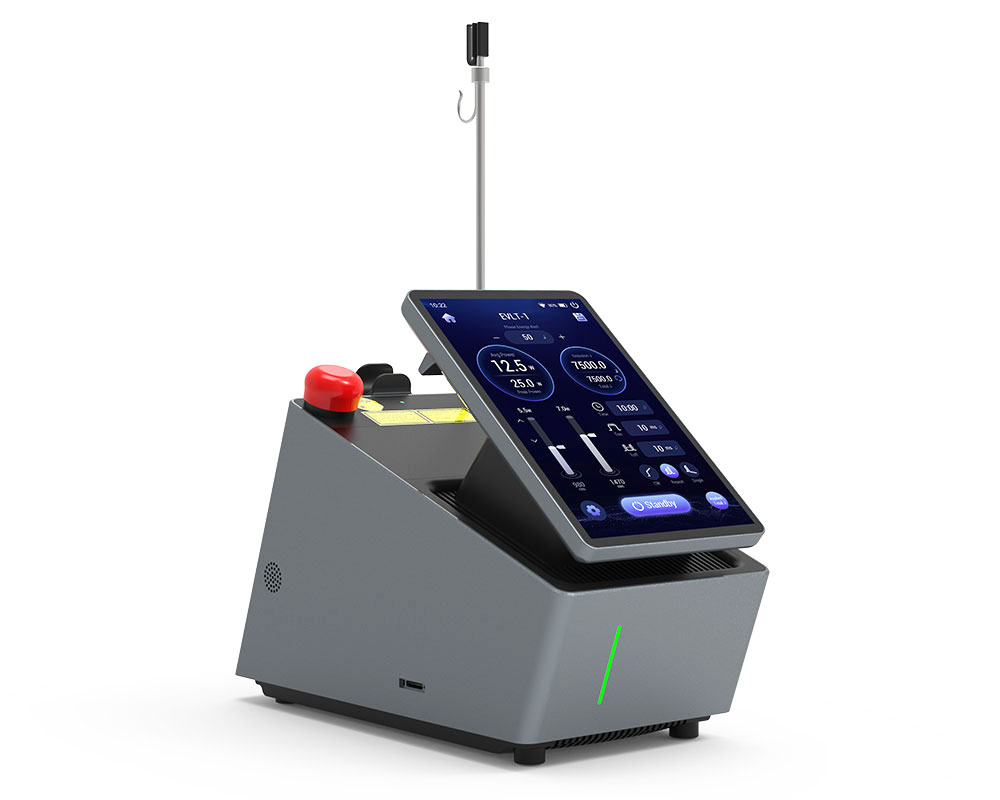

Coelas 1470nm diode laser manufactured by Qolight can be effortlessly used by surgeons. It’s very effective for cutting, vaporization, coagulation, and ablation, it has been widely used in proctology, EVLT, PLDD, ENT, lipolysis, gynecology, and other general surgeries.

1
2
3
1

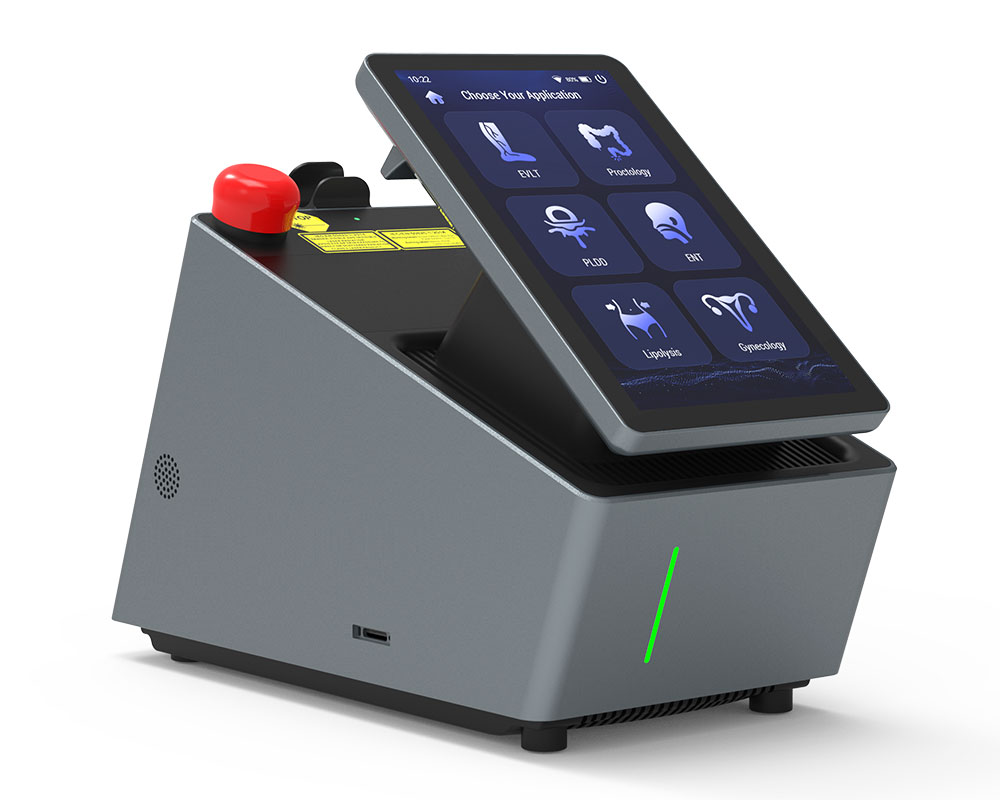

7-inch intuitive interface

2

complete preset protocols (EVLT/Proctology/PLDD/ENT/Lipolysis/Gynecology)

3

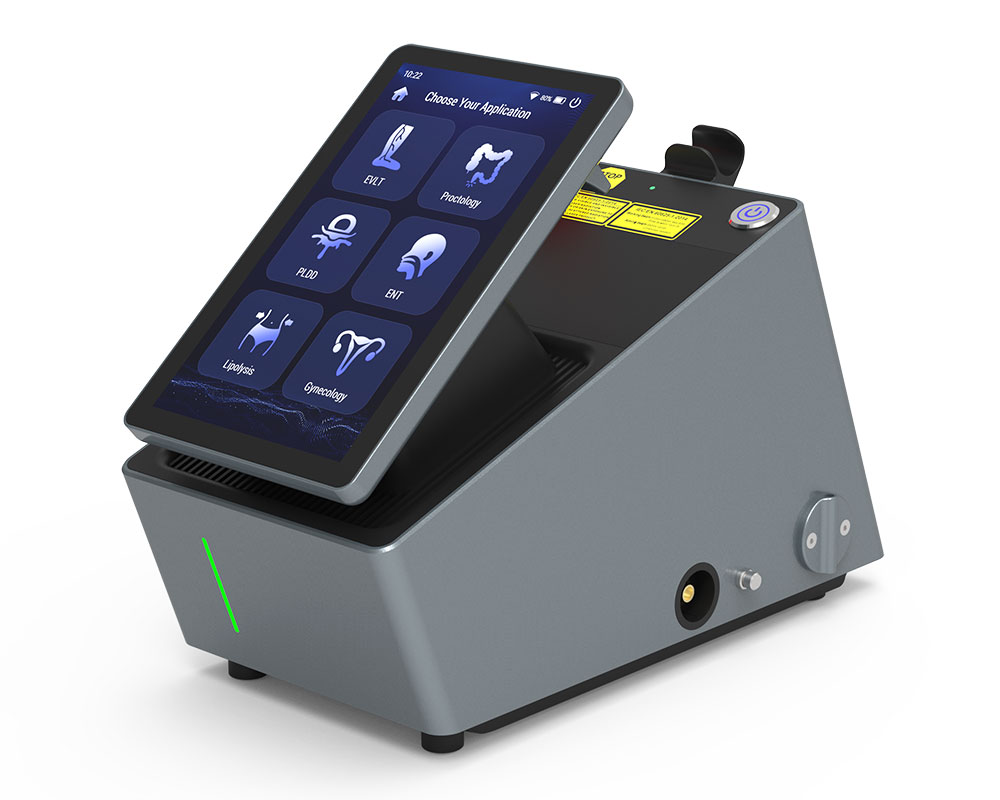

external fiber connector

  • Intuitive interface

    Advanced Android software, 7-inch intuitive interface for easy touch. ①

  • Complete preset protocols

    Easy-to-use protocols for various types of treatments, just a few clicks to start a treatment. ②

  • Efficient 1470nm

    1470nm has a much higher absorption rate in water than 980nm. High efficiency for incision, excision, and ablation.

  • Coordinate with various fibers

    External fiber connector, bare fibers / radial fibers / hemorrhoids conical fibers with SMA905 connectors are all available. ③

  • Portable design

    Compact with modular design, lightweight only 3.65KG, and easy to carry.

  • Built-in rechargeable battery

    Internal lithium battery, can work in different treatment scenarios for a long time. ①

  • Advanced cooling system

    Through hundreds of thermal analysis simulations, it can work continuously for at least 4 hours, with no overheating problem.

  • Multifunctionality

    Replaceable handpieces and preset protocols are immediately usable for all different treatments. ②

1
2
1

built-in rechargeable battery

2

multi-functional handpiece

Technique Specification
Product ModelCoelas™ Surgical Laser
Laser TypeGaAlAs Diode
Laser SystemClass IV
Wavelength1470nm
Power12W
Operation ModeCW / Single Or Repeat Pulses
Pulse Duration10us-3s
Repetition Rate1Hz-20KHz
lP Degree of ProtectionFoot switch (waterproof): IPX8
Aiming Beam650nm, Power＜5mW
Control ModeTrue Color Touch Screen (7 inches, resolution 600*1024)
Transmission SystemMedical Fibers With SMA905 Connector
Power Supply100V-240V~at 2.0A
Dimensions220(L)*133(W)*275(H)mm
Weight3.65KG
