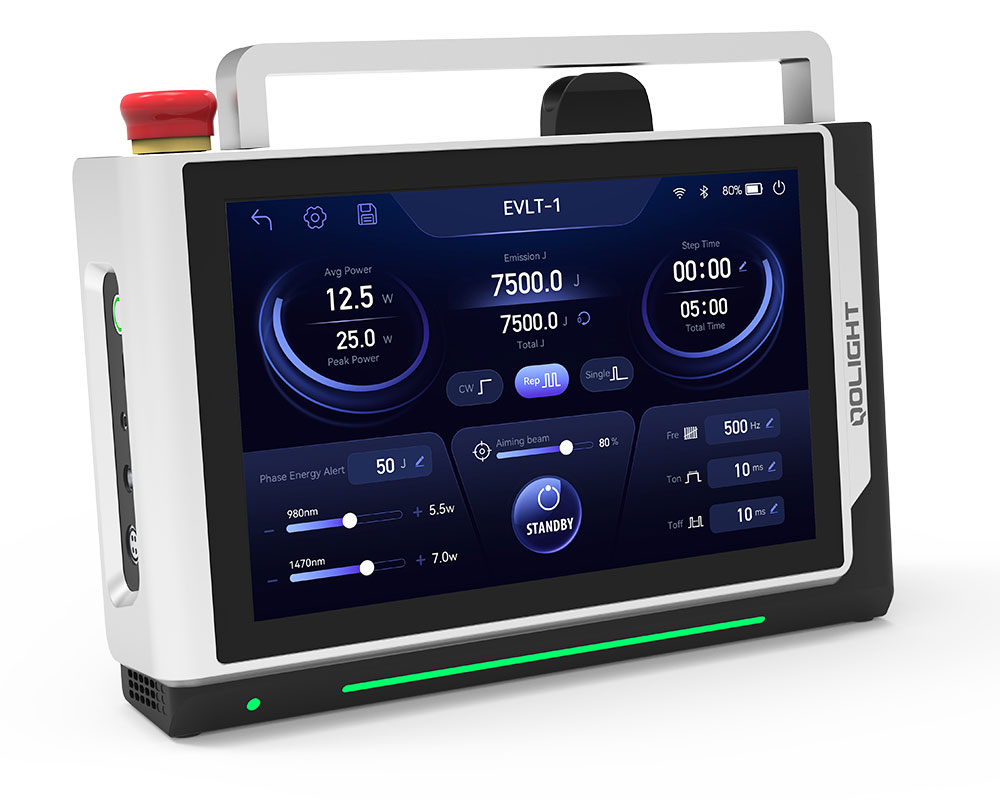

Helilas™ Diode Surgical Laser
Precision and Power for Advanced Surgical Solutions
Precision / Minimal Bleeding / Faster Recovery / Less Pain / Less Tissue Damage
Helilas Surgical Laser is a compact, high-performance surgical laser designed for precision, safety, and versatility. With multi-wavelength options and stable high-power output, it enables effective treatment across a wide range of surgical applications. Its intuitive 10.1-inch touchscreen, intelligent Android OS, and lightweight portable design make operation simple, reliable, and efficient—bringing advanced surgical solutions to every clinical setting.

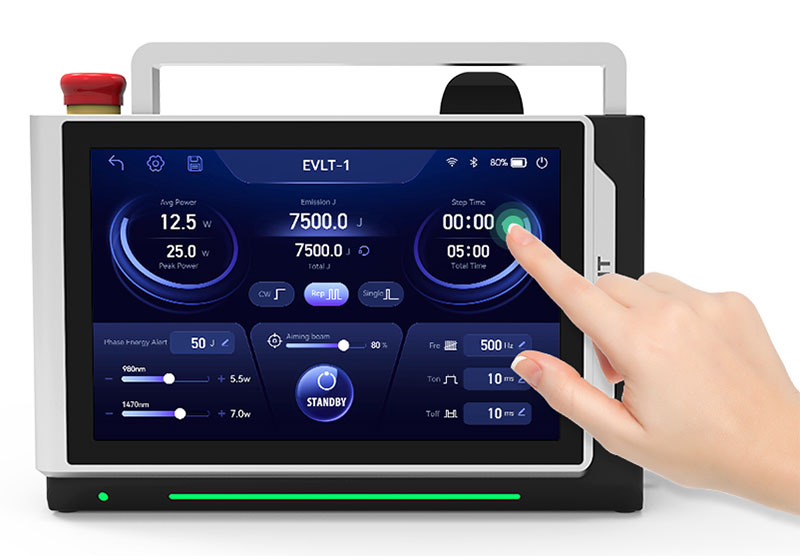

10.1-inch full-view screen

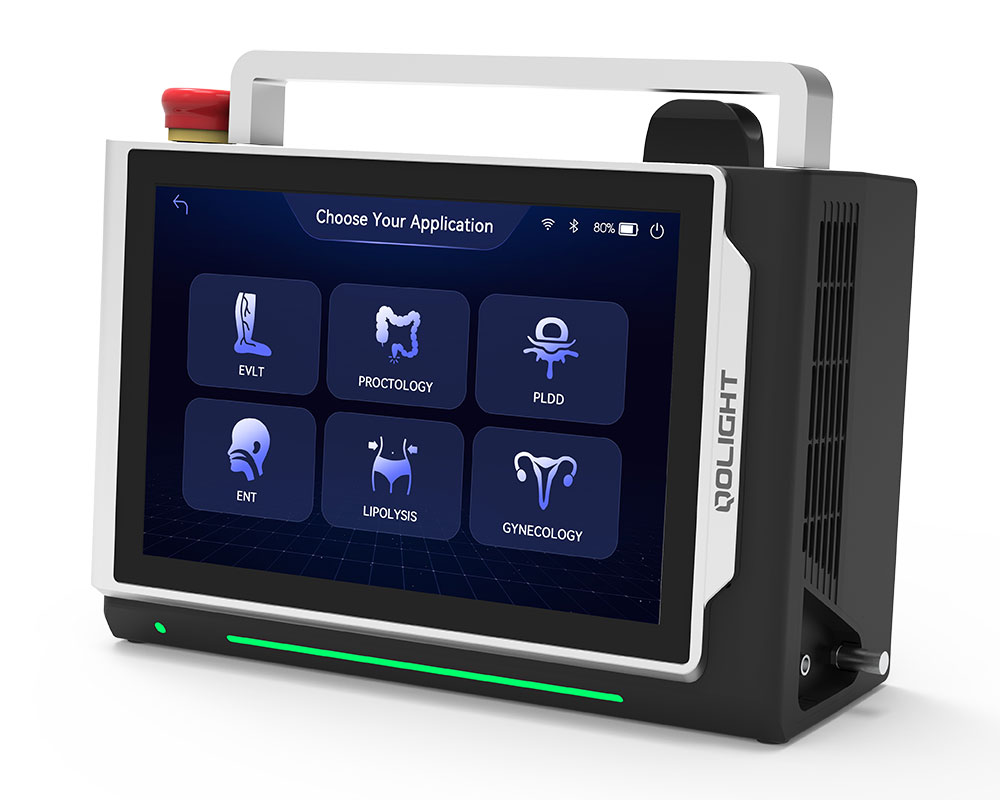

Complete preset protocols (EVLT/Proctology/PLDD/ENT/Lipolysis/Gynecology)
Aluminum front panel

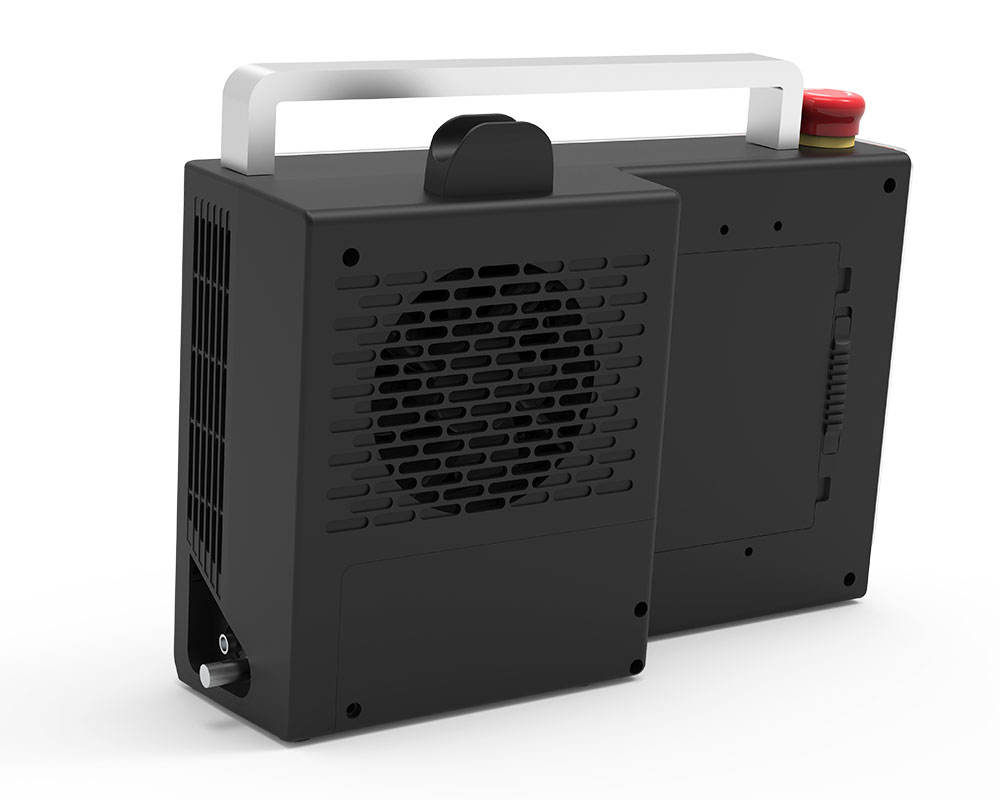

10cm wide portable design
Multi-Wavelength & High Power
Multi-wavelength
- Hardware-based OEM multi-wavelength combination options, 640nm /1470nm /980nm.
- Software-controlled output, multiple wavelengths output simultaneously or individually.
Stable high power output
- Continuous 50W output available.
- A safe and effective surgical treatment option.

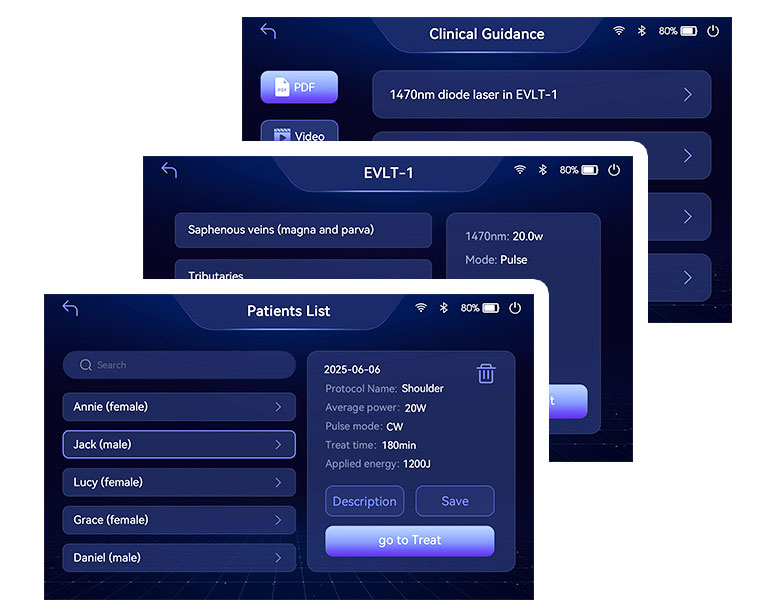

Powerful Android OS Functions
Built-in presets
Quick start of various treatments.
Online software upgrades
Stay updated with the latest features.
Customizable presets
Create and personalize your own presets.
Record treatment data
- Enhanced client trust.
- Records of each stage of patients, such as date, time, power, total joules, etc.
Customizing the" Help" function
Supports PDF and video files to build a guidance information library.
| Product Model | Helilas™ Surgical Laser |
| Laser Type | GaAlAs Diode |
| Laser System | Class IV |
| Wavelength | 1470nm | 980nm+1470nm | 1470nm+1940nm |
| Power | 15W/20W | 30W+15W | 15W+6W |
| Operation Mode | CW / Single or Repeat Pulses |
| Pulse Duration | 10us-3s |
| Repetition Rate | 1Hz-20KHz |
| lP Degree of Protection | Foot Switch (waterproof): IPX8 |
| Aiming Beam | 650nm, Power＜5mW |
| Control Mode | High Resolution, 10.1 Inch Touch Screen (1920x1200px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Power Supply | 100V-240V~at 2.0A |
| Dimensions | 220(L)*290(W)*100(H)mm |
| Weight | 3.3kg |
